Eurus 3 Series
Efficient Airflow, Industrial Strength
The EURUS III Series delivers next-generation air circulation with powerful, energy-efficient PMSM (Permanent Magnet Synchronous Motor) technology. Designed for large-scale spaces such as warehouses, logistics centers, manufacturing plants, stadiums, and shopping malls, this HVLS fan covers up to 2,000 m² with smooth, consistent airflow.
With diameters from 16 ft to 24 ft (4.9 m–7.3 m), each fan moves massive air volumes—up to 933,000 m³/h, exceeding market standards by more than 30%. Its low-speed operation eliminates hot and cold stratification, improving air quality and comfort while reducing HVAC costs.
Built with aerospace-grade magnesium-aluminum blades and an external rotor PMSM motor, the EURUS III operates quietly (<40 dB) and maintenance-free. Certified under CE, KC, SAA, and PSE standards, it’s the ideal solution for large indoor environments requiring stable, silent, and efficient ventilation.
KEY FEATURES
PMSM motor with patented external rotor design
Coverage area up to 2,000 m²
Air volume up to 933,000 m³/h
Large torque: 300 N·m for consistent airflow
Ultra-low noise (<40 dB) operation
Gearless, maintenance-free system
100,000+ hours service life
Corrosion-resistant magnesium-aluminum blades
IP55 protection against dust and water
Advanced heat dissipation for motor longevity
Certified: CE, CB, KC, SAA, PSE

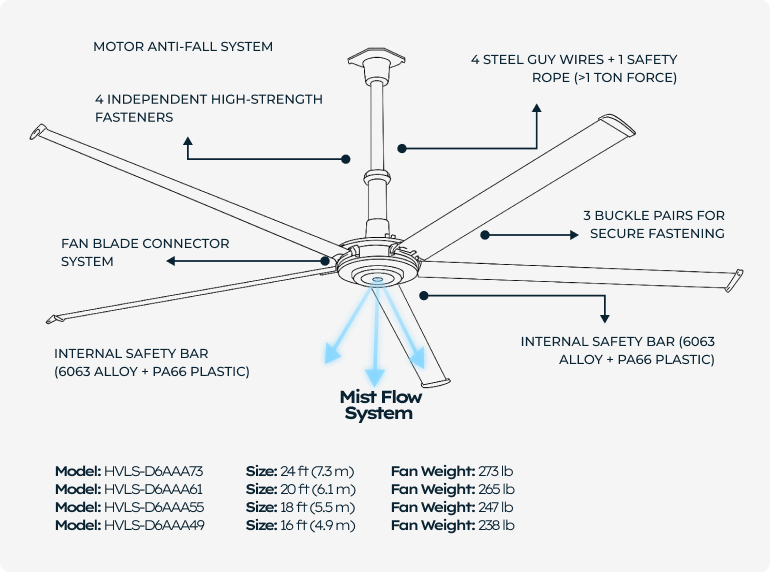

Safety Features
Technical Documentation
Category: Industrial HVLS Fan
Motor Type: PMSM
Power Input: 220V, 1.0–1.5 kW (4.0–4.9A)
Diameter Options: 16 ft / 18 ft / 20 ft / 24 ft
Max Airflow: Up to 933,000 m³/h
Noise Level: <40 dB
Protection Rating: IP55
Coverage Area: Up to 2,000 m²
Weight Range: 108–124 kg (depending on size)
Efficient Airflow
- Massive Coverage Reach: Single fan efficiently moves air across large spaces up to 2,000 m².
- Optimized Energy Efficiency: Consumes just 1.5 kW while replacing over 50 smaller conventional fans.
- Natural Breeze Effect: Creates a gentle, three-dimensional airflow for cooler, more comfortable environments.
Precision Control, Effortless Operation
Equipped with Danfoss and Schneider control systems, the EURUS III Series offers smooth, precise performance. The intelligent control box ensures safety, stability, and easy operation with variable speed settings.
The fan’s maintenance-free PMSM motor eliminates the need for gear oil changes and reduces long-term service costs, making it ideal for continuous industrial and commercial use.
|
Feature / Item
|
Commercial Fan
|
BreezeTech Fan
|
|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
