Stream-Master Pump Series

High-Pressure Misting Pump

Professional High-Pressure Misting for Outdoor Cooling

The Stream-Master Pump Series is a professional-grade high-pressure misting pump engineered for reliable outdoor cooling. Powered by a 1 HP Canadian-made motor and a CF 1205 E triplex plunger pump, it delivers consistent performance for patios, restaurants, events, garages, and commercial spaces across Florida and the U.S.

Up to 1,200 PSI for Fast, Efficient Evaporative Cooling

By generating up to 1,200 PSI at 0.5 US GPM, the Stream-Master pump produces an ultra-fine mist that evaporates almost instantly, reducing ambient temperature by up to 10°F. This makes it a dependable core component for any outdoor misting system that needs commercial-grade pressure without commercial-grade complexity.

Built for Commercial and Residential Misting Systems

Compact, durable, and easy to integrate, the Stream-Master Series is designed to power misting lines, fans, and shade structures alike, giving property owners and installers a dependable pressure source for year-round outdoor comfort.

Stream-Master Features & Benefits

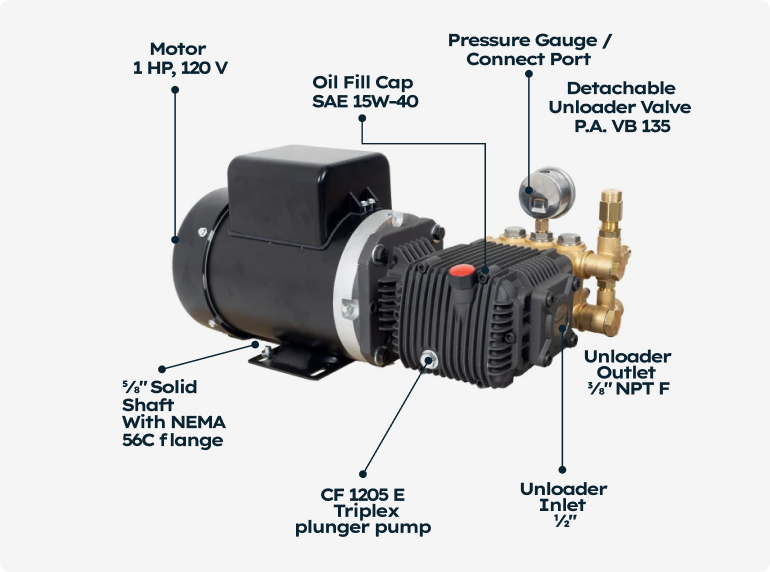

Reliable Canadian-Engineered Motor

The 1 HP Canadian-made motor delivers consistent, reliable power.
The CF 1205 E triplex plunger pump ensures smooth, low-vibration operation.

High-Pressure Misting Performance

Up to 1,200 PSI (82 bar) produces a fine, fast-evaporating mist.
0.5 US GPM (1.9 L/min) flow rate is calibrated for efficient cooling output.

Precision Pressure Control

The detachable P.A. VB 135 unloader valve, made in Italy, allows pressure adjustment.
Consistent output protects the system and extends component life.

Safety Features

Technical Specifications

Motor: 1 HP Canadian-Made Motor

Model: CF 1205 E

Pressure: 1,200 PSI (82 bar)

Flow Rate: 0.5 US GPM (1.9 L/min)

Power: 1 HP (0.74 kW)

RPM: Half speed

Pump Mechanism: Triplex plunger

Pump Inlet: ½″ NPT F

Pump Outlet: ⅜″ NPT F

Applications Across Outdoor Environments

The Stream-Master Pump Series is engineered to power misting systems across a wide range of outdoor settings. In residential outdoor spaces, it provides the pressure needed for patios and backyard cooling systems to perform reliably through Florida’s peak heat.

For hospitality and food service, the Stream-Master pump supports restaurant and bar misting systems, keeping outdoor dining areas comfortable during service hours. It’s also a strong fit for event and rental cooling setups, where dependable pressure output is critical for temporary installations.

What is the Stream-Master Pump Series used for?

The Stream-Master Pump Series is a high-pressure misting pump used to power outdoor cooling systems. It generates up to 1,200 PSI to produce a fine, fast-evaporating mist, making it ideal for patios, restaurants, events, garages, and commercial spaces that need reliable cooling performance.

How much does the Stream-Master pump reduce temperature?

The Stream-Master pump can reduce ambient outdoor temperature by up to 10°F. This cooling effect comes from evaporative technology, where high-pressure mist evaporates on contact with hot air, lowering the surrounding temperature without adding humidity buildup.

What pressure and flow rate does the Stream-Master pump deliver?

The Stream-Master pump delivers up to 1,200 PSI (82 bar) of pressure at a flow rate of 0.5 US GPM (1.9 L/min). This combination is engineered to produce a fine, evaporative mist suited for both residential and commercial misting applications.

What motor powers the Stream-Master pump?

The Stream-Master Pump Series is powered by a 1 HP Canadian-made motor paired with a CF 1205 E triplex plunger pump. This combination provides reliable, consistent pressure output while operating at half speed to reduce wear and extend the pump’s lifespan.

Can the pressure be adjusted on the Stream-Master pump?

Yes. The Stream-Master pump includes a detachable P.A. VB 135 unloader valve, made in Italy, which allows the pressure output to be adjusted. This lets installers fine-tune mist intensity based on the specific outdoor environment or system requirements.

Is the Stream-Master pump suitable for commercial use?

Yes. With its triplex plunger pump, 1,200 PSI output, and durable construction, the Stream-Master Series is built for continuous, reliable operation in commercial environments such as restaurants, event venues, garages, and warehouse spaces.
